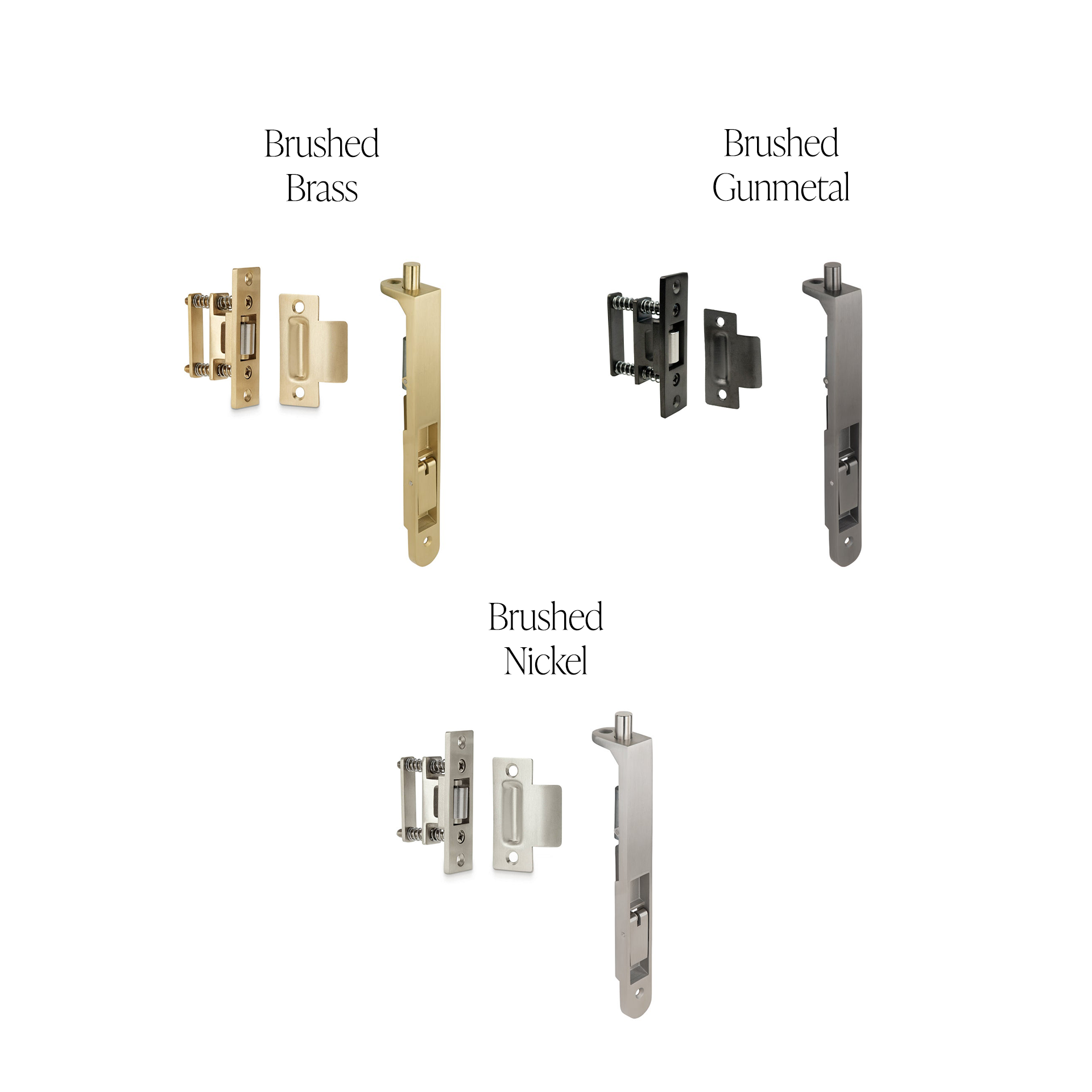

Roller Latch & Drop Bolt Set (Double Set)

Roller Latch + Flush Bolt Set – Pre-Routed for Perfect Alignment

A premium hardware pairing designed to elevate the performance and finish of modern door systems. This set includes our solid brass Roller Latch (supplied, pre-routed, and ready for fitting after painting) and a high-grade stainless-steel Flush Bolt (supplied, pre-routed, and ready for fitting after painting). Together, they deliver smooth operation, secure closure, and a refined architectural aesthetic — ideal for double doors, French doors, utility doors, and minimalist internal or external applications.

What’s Included

• 2 × Roller Latches (Top & Bottom Routing Included)
  – Hardware supplied loose for installation after painting

  – Includes matching striker plates

• 2 × Flush Bolt (Top & Bottom Routing Included)
  – Hardware supplied loose for installation after painting

  – Door + jamb/sill are pre-routed for exact fit

Roller Latch – Solid Brass, Installed

Crafted from solid brass with an electroplated brushed finish, the Roller Latch offers quiet, precise movement with adjustable tension to suit your preferred door feel. Pre-installed at the factory for perfect alignment and removed before transport, it delivers a clean, hardware-minimal look while maintaining secure closure.

Specifications

• Material: Solid Brass

• Finish: Electroplated Brushed Brass

• Use: Internal & External

• Function: Adjustable Tension

• Striker Plate: 75mm (H) × 33mm (W)

• Latch Body: 92mm (H) × 31mm (W)

• Roller Bolt Width: 24mm

Key Features

• Solid brass construction for long-lasting strength

• Sleek, architectural appearance

• Tension-adjustable for smooth, tailored operation

• Pre-routed for perfect fit and alignment

• Supplied loose to allow painting before final installation

• Suitable for both internal and external door applications

Flush Bolt – Pre-Routed, Ready for Fitting After Painting

Manufactured from premium 304 stainless steel, the Flush Bolt secures inactive door leaves with a clean, recessed design. It is ideal for double doors, French doors, bi-folds, and utility doors — locking the door leaf firmly in place while remaining visually unobtrusive.

Each door is factory-routed for:

• Flush bolt pockets (top & bottom of door)

• Matching latch recesses in sill and jamb

Once painting is complete, the hardware installs straight in with no additional cutting required.

Specifications

• Material: 304 Stainless Steel

• Depth: 37mm

• Length: 204mm

• Width: 25mm

• Bolt Diameter: 11mm

• Bolt Throw: 15mm

Key Features

• High-grade stainless steel for durability and strength

• Sleek, concealed profile for a flush architectural finish

• Pre-routed for perfect fit and alignment

• Supplied loose to allow painting before final installation

• Can be fitted immediately after painting with no adjustments needed

Note: Only one door requires flush bolts (top and bottom). We will confirm the inactive door side at order stage.
