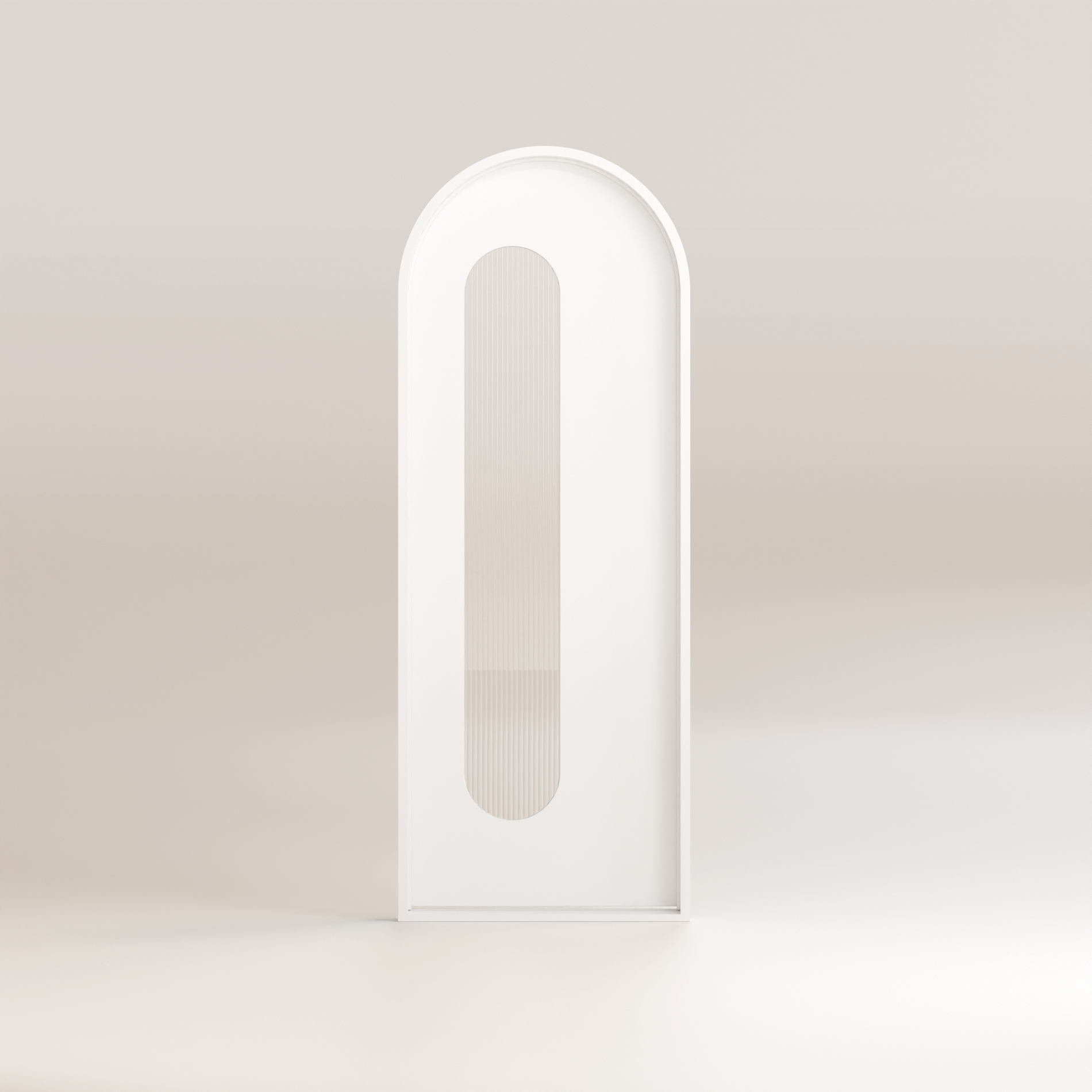

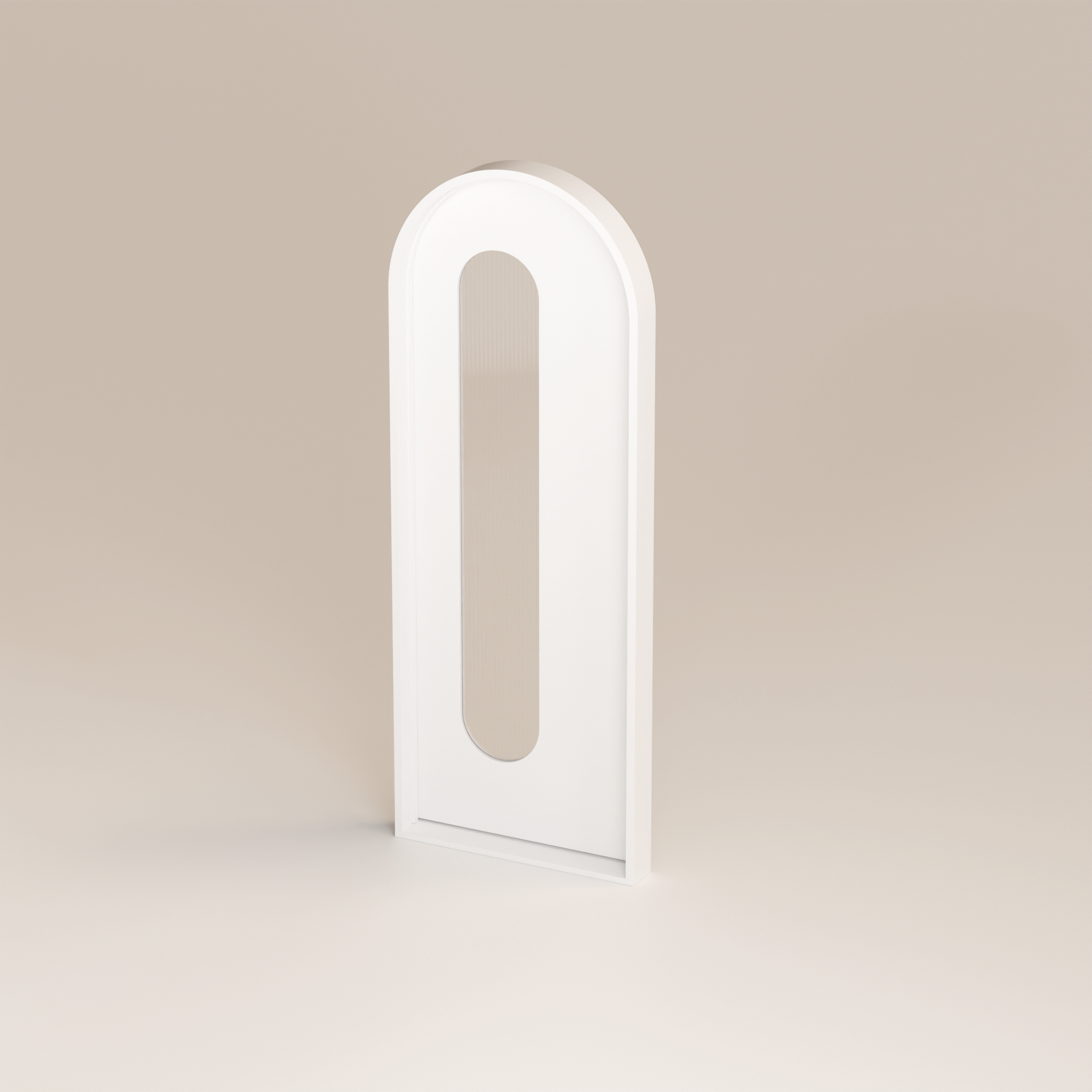

Arlo Arch Entry Door Kit — Exterior Grade — Pre-Built & Ready to Install
Bringing soft curves and balanced proportions to modern façades, the Arlo Arch Entry Door Kit combines architectural elegance with practical simplicity. Its continuous arch and understated detailing frame a pre-installed glass panel, creating a refined focal point for any entryway.

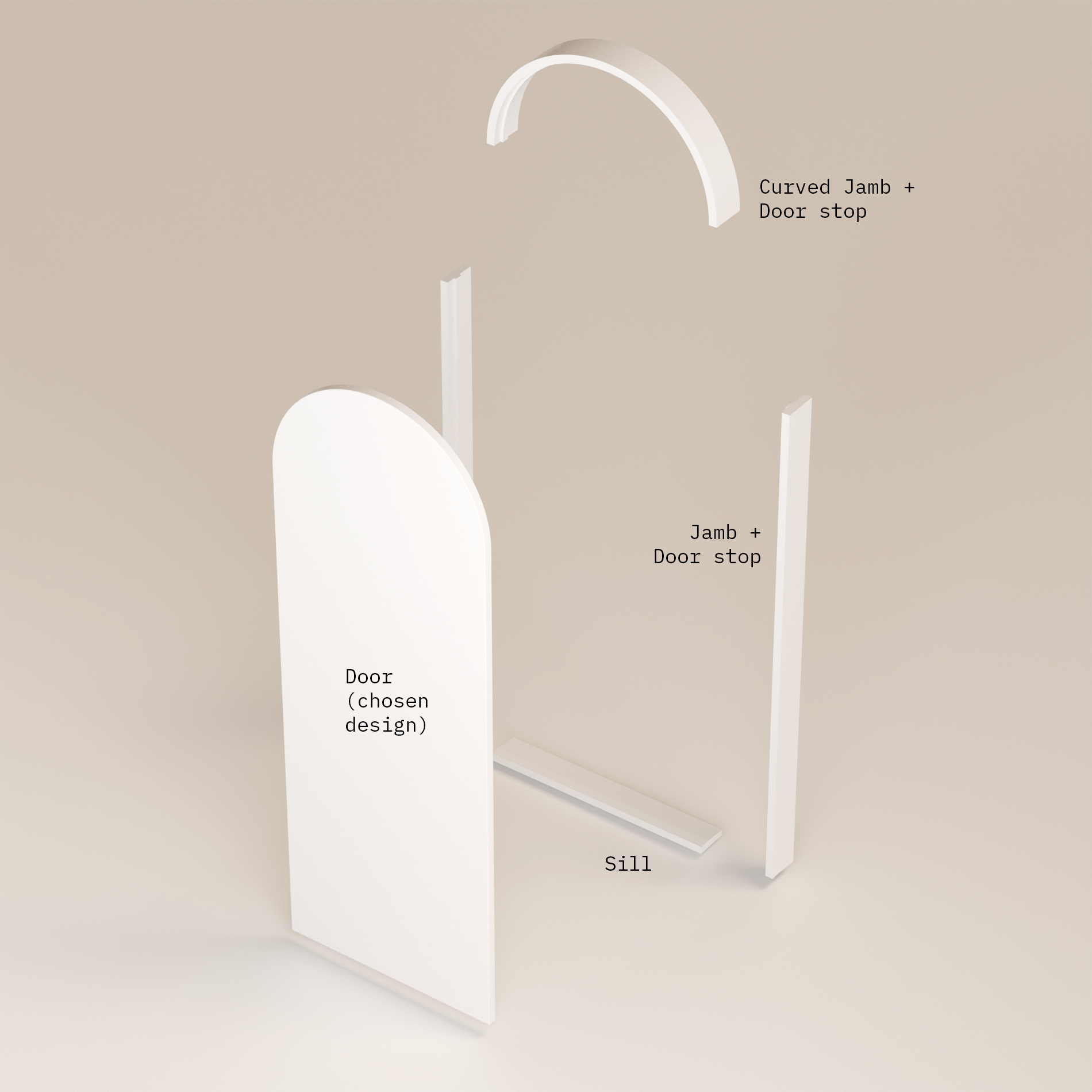

Supplied as a complete kit with matching sill and jambs, Arlo is built for fast, accurate installation. Perfect for contemporary builds, boutique projects, and luxury renovations, the Arlo Arch offers a timeless silhouette that enhances both modern and transitional designs.
Arlo Entry Door (glass included & pre-installed)
Exterior grade jambs & head
Compression seals to perimeter & brush seals to sill
Hardwood door sill (exterior grade)
Door kit comes fully assembled with door margins set ready to fix in place
Specifications:
Made in Australia
Constructed from premium exterior grade solidcore blockboard pre-paint ready finish
Door thickness: 40mm

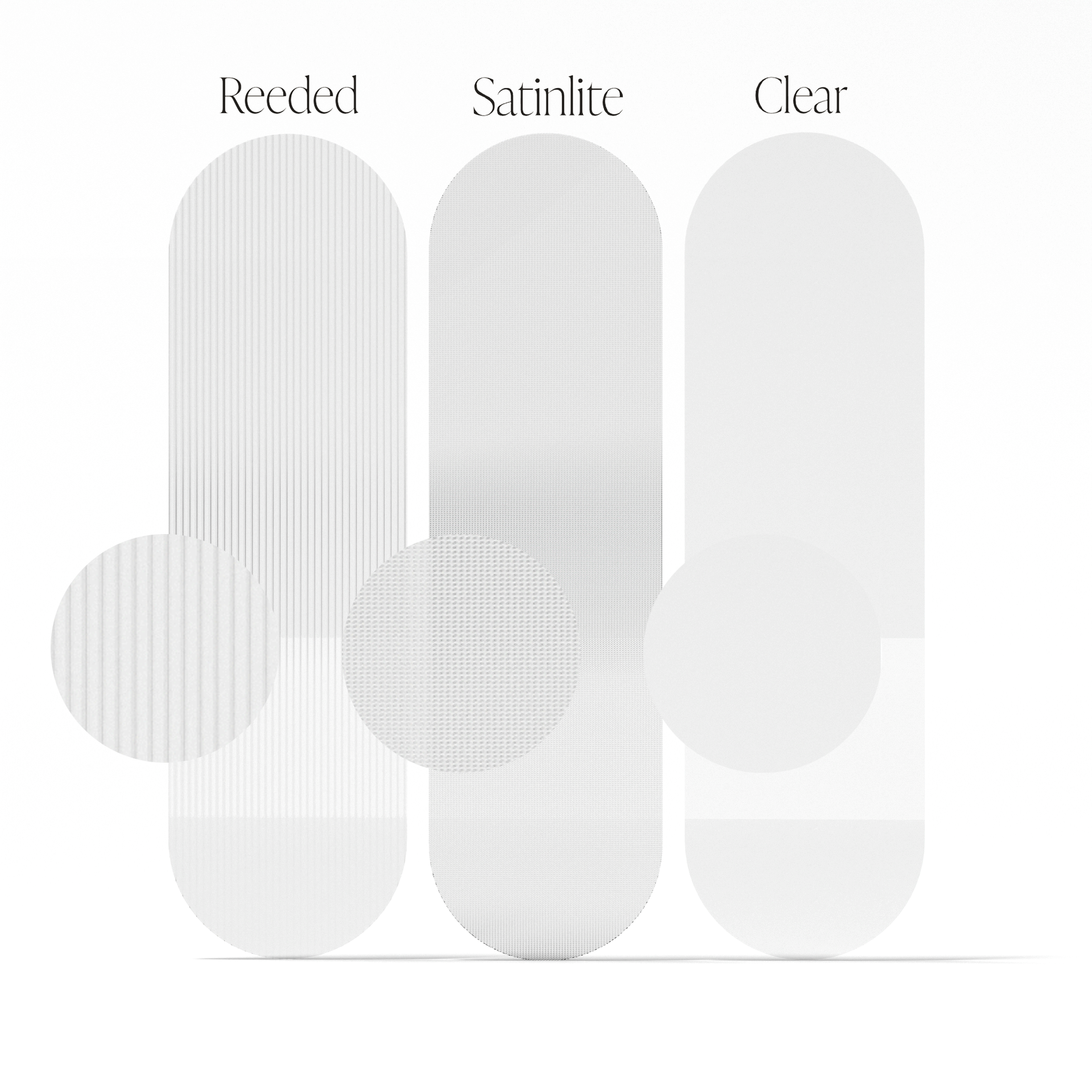

6mm toughened glass (Satinlite, Reeded, or Clear options)
Available in 2040mm and 2340mm heights
Width options from 720mm to 920mm
Door Seals
Our high-quality, replaceable door seals are press-fit — no sticky adhesives required — and are designed to eliminate draughts and improve insulation for a more comfortable home.
The bottom seal features fine bristles that sit neatly in a rebated track, completely hidden from view, providing an effective barrier against noise, dust, and air leakage.
The top and side seals are made with a durable polyethylene outer sheathing that resists wear and tear. They’re designed for long-term performance, offering:
Outer skin unaffected by paints and stains
High noise reduction properties
No mould or mildew growth
Excellent recovery after long-term deflection
Flexible deflection range to accommodate seasonal movement and seal gaps
Built for durability and easy maintenance — simply wash with warm, soapy water.
Shipping: We ship Australia wide Click here to view shipping rates table
Glass:
Size:
